Jag’s AeroQuad

My flying machine is based around the AeroQuad project.


Jag’s Flying Machine Mk5CF


My quad is built from:

  • Homemade CF frame
  • Raptor Heli Landing Gear
  • Arduino Mega
  • AeroQuad v2.0 Shield
  • Turnigy Plush 25amp ESC
  • Turnigy AerodriveXp Sk Series 28-26 1000kv motors
  • RCtimer BC2836-7 1120KV Outrunner Brushless Motor
  • Zippy Flight Max 4000mAh Battery
  • JR XF622 TX/RX
  • Camera – Panasonic HM-TA1

Weight = 1.2kg

New plans for a mini-quad



Jag’s Flying Machine Mk4



Frame CAD Model

Jag’s Flying Machine Mk2

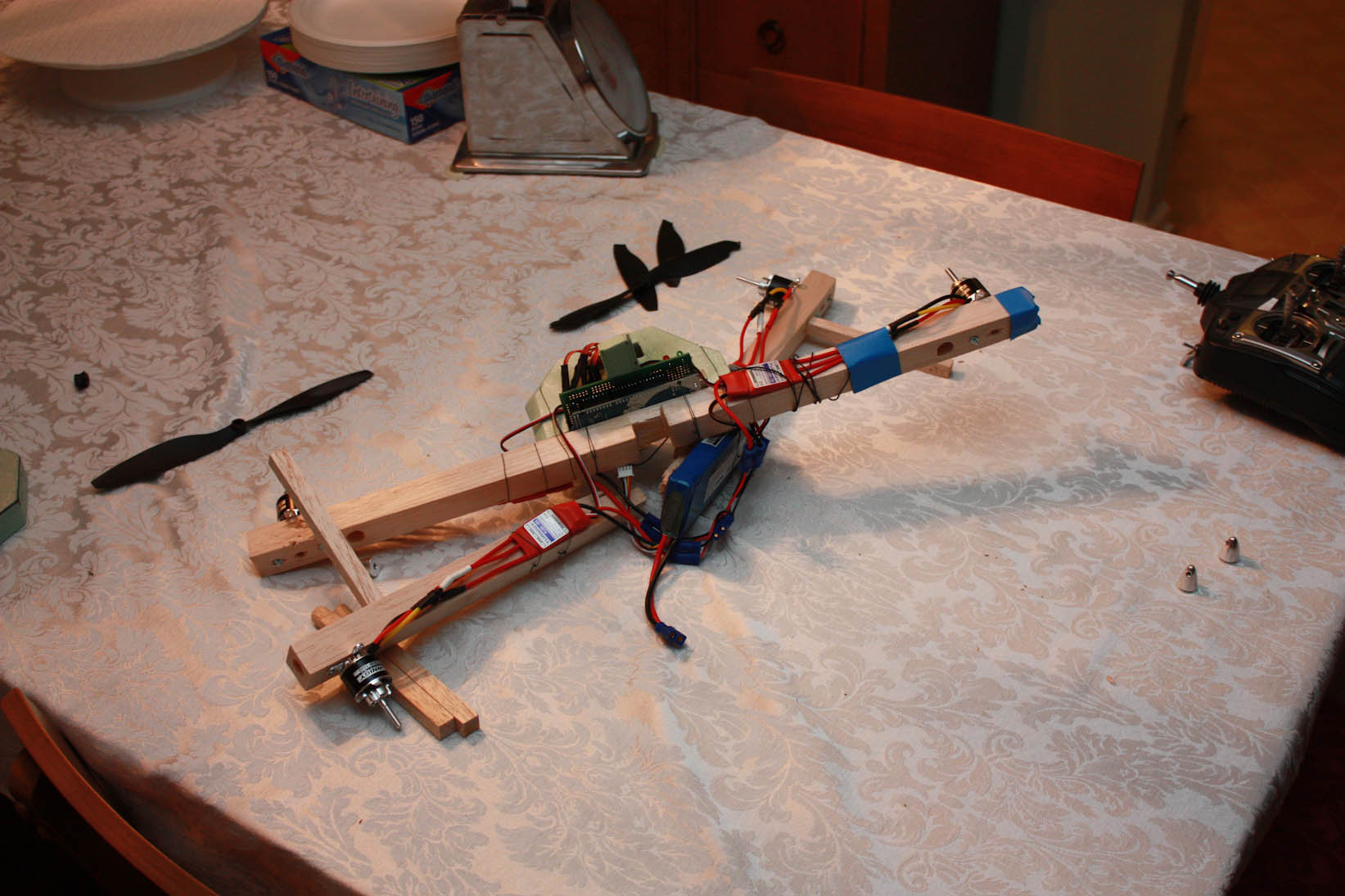

Jag’s Flying Machine Mk1
